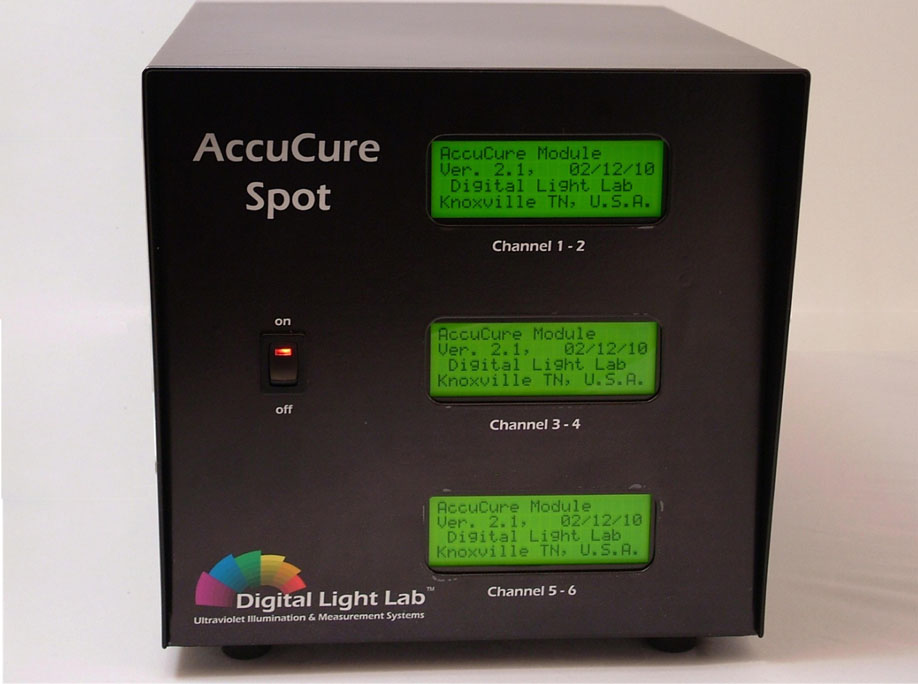

AccuCure Intelligent Spot Controller
SA7055

Part Number | SA7055 |
Description | 6-ch controller for AccuCure Spot LED heads with USB interface and software control for intensity and exposure cycle |
Channels | 6 |
Physical Size (H x W x D) |
206mm X 203mm X 255mm |
Power | 10 Watts |
Line Voltage (min / max) |
90 / 264 VAC |
Line Frequency (min / max) |
47 / 63 Hz |
PC Interface | USB |
Exposure Cycle Control | Yes |
Intensity Control | Yes |
Intelligent Intensity Control | Yes |
Pulsed Mode | Yes |
AccuCure Software | Yes |
LED Temperature Monitor | Yes |
External Trigger Interface | Yes |
Similar Controller Products
Part Number | Description |
---|---|
SA7050 | 1-ch Intelligent Spot controller w USB |
SA7050E | 1-ch Intelligent Spot controller w Ethernet |
SA7051 | 2-ch Intelligent Spot controller w USB |
SA7051E | 2-ch Intelligent Spot controller w Ethernet |
SA7055E | 6-ch Intelligent Spot controller w Ethernet |
SA7057 | 8-ch Intelligent Spot controller w USB |
SA7057E | 8-ch Intelligent Spot controller w Ethernet |
Compatible LED Heads
Part Number | Description |
---|---|
ULM-1-365 | 365-nm, 5W, wide beam LED head |
ULM-1-385 | 385-nm, 5W, wide beam LED head |
ULM-1-400 | 400-nm, 5W, wide beam LED head |
ULM-1-420 | 420-nm, 5W, wide beam LED head |
ULM-1A-365 | 365-nm, 12W, wide beam LED head |
ULM-1A-385 | 385-nm, 12W, wide beam LED head |
ULM-1A-400 | 400-nm, 12W, wide beam LED head |
ULM-1A-420 | 420-nm, 12W, wide beam LED head |
ULM-2-365 | 365 nm, 5W, wide beam LED, C-mount |
ULM-2-385 | 385-nm, 5W, wide beam LED, C-mount |
ULM-2-400 | 400-nm, 5W, wide beam LED, C-mount |
ULM-2-420 | 420-nm, 5W, wide beam LED, C-mount |
ULM-2A-365 | 365-nm, 12W, wide beam LED, C-mount |
ULM-2A-385 | 385-nm, 12W, wide beam LED, C-mount |
ULM-2A-400 | 400-nm, 12W, wide beam LED, C-mount |
ULM-2A-420 | 420-nm, 12W, wide beam LED, C-mount |
ULM-3-365 | 365-nm, 5W, focused beam LED head |
ULM-3-385 | 385-nm, 5W, focused beam LED head |
ULM-3-400 | 400-nm, 5W, focused beam LED head |
ULM-3-420 | 420-nm, 5W, focused beam LED head |
